类 XEAnimatableModelComponent 继承关系图:

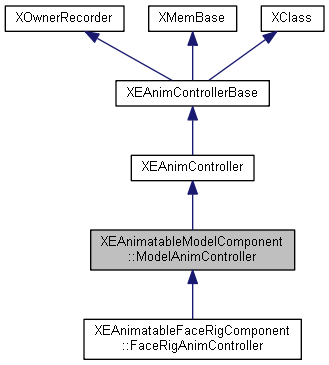

类 XEAnimatableModelComponent::ModelAnimController 继承关系图:
Variables | |
| XEAnimatableModelComponent = {} | |
| XEAnimatableModelComponent__AnimLayerData = {} | |
| XEAnimatableModelComponent | AnimLayerData = XEAnimatableModelComponent__AnimLayerData |
| XEAnimatableModelComponent__AnimLayerData | AnimLayerDataIndexNone = 0 |
| XEAnimatableModelComponent__AnimLayerData | AnimLayerDataIndexNotSet = 0 |
| XEAnimatableModelComponent__AnimLayerData | nLayerIndex = 0 |
| @type number 索引 More... | |
| XEAnimatableModelComponent__AnimLayerData | szPath = '' |
| @type string 路径 More... | |
| XEAnimatableModelComponent__AnimLayerData | bActive = false |
| @type boolean 是否被激活 More... | |
| XEAnimatableModelComponent__AnimLayerData | bIsMontageAsset = false |
| @type boolean 是否是蒙太奇资源 More... | |
Function Documentation
◆ ActiveAllLayers() [1/2]
| function XEAnimatableModelComponent__ModelAnimController ActiveAllLayers | ( | ) |
激活所有层
- Returns
- void
◆ ActiveAllLayers() [2/2]
| function XEAnimatableModelComponent ActiveAllLayers | ( | bPlay | ) |
激活所有层
- Parameters
-
bPlay boolean
- Returns
- void
◆ ActiveLayer()
| function XEAnimatableModelComponent ActiveLayer | ( | pLayerName | , |
| bPlay | , | ||
| bExclusively | |||
| ) |
激活一个动画层
- Parameters
-
pLayerName string 要激活的层name bPlay boolean 是否自动播放 bExclusively boolean 是否仅激活一个Layer，如果为true，表示当前仅激活一个layer，其他都置为非激活态
- Returns
- void
◆ AddAnimBlendSequence()
| function XEAnimatableModelComponent AddAnimBlendSequence | ( | pLayerName | , |
| pPath | , | ||
| fStartTime | , | ||
| fEndTime | , | ||
| eBlendType | , | ||
| bActive | , | ||
| bPlay | , | ||
| bExclusively | |||
| ) |
添加融合动画资源到动画控制器的某一层上
- Parameters
-
pLayerName string 要添加动画的层 pPath string 动画资源路径 fStartTime number 设置添加的动画开始时间 fEndTime number 设置添加的动画结束时间 eBlendType number 动画融合类型 bActive boolean 是否激活所在的Layer bPlay boolean 是否自动播放 bExclusively boolean 是否仅激活一个Layer，如果为true，表示当前仅激活一个layer，其他都置为非激活态
- Returns
- XAnimMultiLayer 动画控制器（具有多层动画的控制器）
◆ AddAnimSequence()
| function XEAnimatableModelComponent AddAnimSequence | ( | pPath | , |
| bActive | , | ||
| bPlay | , | ||
| bExclusively | , | ||
| bIsMontageAsset | |||
| ) |
添加seq动画资源到动画控制器上
- Parameters
-
pPath string 动画资源路径 bActive boolean 是否激活所在的Layer bPlay boolean 是否自动播放 bExclusively boolean 是否仅激活一个Layer，如果为true，表示当前仅激活一个layer，其他都置为非激活态 bIsMontageAsset boolean 添加的是否是蒙太奇中的seq动画(一般由上层其他调用的地方传下来)
- Returns
- XAnimMultiLayer 动画控制器（具有多层动画的控制器）
◆ AddLayer()
| function XEAnimatableModelComponent AddLayer | ( | pLayerName | , |
| bActive | , | ||
| bPlay | , | ||
| bExclusively | |||
| ) |
添加一个空层（不加动画资源）
- Parameters
-
pLayerName string 要添加的层name bActive boolean 是否激活所在的Layer bPlay boolean 是否自动播放 bExclusively boolean 是否仅激活一个Layer，如果为true，表示当前仅激活一个layer，其他都置为非激活态
- Returns
- XAnimMultiLayer
◆ AssignAnimationController()
| function XEAnimatableModelComponent AssignAnimationController | ( | ) |
如果不存在动画控制器，创建一个动画控制器，并返回
- Returns
- XEAnimController
◆ AssignCustomPrimitiveAnimController()
| function XEAnimatableModelComponent__ModelAnimController AssignCustomPrimitiveAnimController | ( | pPlayer | ) |
从外部设置原始动画播放控制器
- Parameters
-
pPlayer XAnimMultiLayer 外部已经创建好的控制器
- Returns
- void
- Attention
- 一般来说，pPlayer要在外部维护释放删除
◆ BuildPhysicsSkeletalRootInstance()
| function XEAnimatableModelComponent BuildPhysicsSkeletalRootInstance | ( | ) |
创建物理骨骼根实例
- Returns
- void
◆ CreateSkeletalPhysicsInstance()
| function XEAnimatableModelComponent CreateSkeletalPhysicsInstance | ( | ) |
创建骨骼物理实例指针
- Returns
- boolean
◆ DeacitveAllLayers()
| function XEAnimatableModelComponent DeacitveAllLayers | ( | ) |
把所有动画层设为非激活态
- Returns
- void
◆ DeacitveLayer()
| function XEAnimatableModelComponent DeacitveLayer | ( | pLayerName | ) |
把某一动画层设置为不激活态
- Parameters
-
pLayerName string 要去激活的层name
- Returns
- void
◆ DeactiveAllLayers()
| function XEAnimatableModelComponent__ModelAnimController DeactiveAllLayers | ( | ) |
把所有层设为非激活态
- Returns
- void
◆ DestroyPhysicsSkeletalRootInstance()
| function XEAnimatableModelComponent DestroyPhysicsSkeletalRootInstance | ( | ) |
销毁物理骨骼根实例
- Returns
- boolean
◆ Empty()
| function XEAnimatableModelComponent Empty | ( | ) |
清空当前组件，包括移除各个实例、移除布料、清空播放列表等
- Returns
- void
◆ GetAnimatableModelComponent()
| function XEAnimatableModelComponent__ModelAnimController GetAnimatableModelComponent | ( | ) |
获取动画模型组件指针
- Returns
- XEAnimatableModelComponent
◆ GetAnimController()
| function XEAnimatableModelComponent GetAnimController | ( | ) |
获取动画控制器（蒙太奇动画控制器或者seq动画控制器）
- Returns
- XEAnimController
◆ GetAnimLayerArray()
| function XEAnimatableModelComponent GetAnimLayerArray | ( | ) |
获取层数据列表
- Returns
- AnimLayerData[]
◆ GetAnimLayerData() [1/2]
| function XEAnimatableModelComponent GetAnimLayerData | ( | pLayerName | ) |
通过层name获取到层数据AnimLayerData
- Parameters
-
pLayerName string
◆ GetAnimLayerData() [2/2]
| function XEAnimatableModelComponent GetAnimLayerData | ( | nLayerIndex | ) |
通过层索引获取到层数据AnimLayerData
- Parameters
-
nLayerIndex number
◆ GetBlendSequenceDuration()
| function XEAnimatableModelComponent__ModelAnimController GetBlendSequenceDuration | ( | pBlendLayerName | , |
| pSeqName | |||
| ) |
获取融合动画层某一资源的长度
- Parameters
-
pBlendLayerName string 融合层名称 pSeqName string 动画资源名称
- Returns
- number
◆ GetCucolorisColor()
| function XEAnimatableModelComponent GetCucolorisColor | ( | ) |
XEAnimatableModelComponent_GetCucolorisColor00
- Returns
- XCOLORBASE
◆ GetCurPlayAnimation()
| function XEAnimatableModelComponent GetCurPlayAnimation | ( | ) |
获取当前播放的动画名称或所在层名称
- Returns
- string
◆ GetCustomPrimitiveAnimController()
| function XEAnimatableModelComponent__ModelAnimController GetCustomPrimitiveAnimController | ( | ) |
获取原始动画播放控制器
- Returns
- XAnimMultiLayer
◆ GetExplicitAnimationController()
| function XEAnimatableModelComponent GetExplicitAnimationController | ( | ) |
获取动画控制器（seq动画控制器）
- Returns
- XEAnimController
◆ GetFirstActiveLayerName()
| function XEAnimatableModelComponent GetFirstActiveLayerName | ( | ) |
获取到第一个激活状态的层
- Returns
- string 如果取到，返回层name，没有取到，返回NULL
◆ GetIXSkeletalPhysicsInstance()
| function XEAnimatableModelComponent GetIXSkeletalPhysicsInstance | ( | ) |
获取骨骼物理实例指针
- Returns
- IXSkeletalPhysicsInstance 骨骼物理实例指针
◆ GetPhysicsSkeletalRootInstance()
| function XEAnimatableModelComponent GetPhysicsSkeletalRootInstance | ( | ) |
获取物理骨骼根实例
- Returns
- XEPhysicsSkeletalRootInstance 物理骨骼根实例指针
◆ GetPrimitiveAnimController()
| function XEAnimatableModelComponent__ModelAnimController GetPrimitiveAnimController | ( | ) |
获取原始动画播放控制器
- Returns
- XAnimMultiLayer
◆ GetSequenceDuration()
| function XEAnimatableModelComponent__ModelAnimController GetSequenceDuration | ( | pSeqName | ) |
获取动画资源长度
- Parameters
-
pSeqName string 动画资源名称
- Returns
- number
◆ GetTimeLength()
| function XEAnimatableModelComponent__ModelAnimController GetTimeLength | ( | ) |
获取动画时长
- Returns
- number
◆ HasActiveLayer()
| function XEAnimatableModelComponent HasActiveLayer | ( | ) |
判断当前是否有激活态的层
- Returns
- boolean 如果有，返回true，没有，返回false
◆ HasLayer()
| function XESceneARAdsVideoComponent HasLayer | ( | pLayerName | ) |
判断当前是否有某一层
- Parameters
-
pLayerName string 要判断的层name
- Returns
- boolean 如果有，返回true，没有，返回false
根据Layer name判断是否有Layer
- Parameters
-
pLayerName string
- Returns
- boolean
◆ IsInnerPrimitiveAnimController()
| function XEAnimatableModelComponent IsInnerPrimitiveAnimController | ( | ) |
是否是内部创建的原始动画控制器
- Returns
- boolean
◆ IsRenderBodyShapeDebug()
| function XEAnimatableModelComponent IsRenderBodyShapeDebug | ( | ) |
获取是否渲染所有刚体的状态
- Returns
- boolean
◆ IsUsedAsPlayer()
| function XEAnimatableModelComponent IsUsedAsPlayer | ( | ) |
XEAnimatableModelComponent_IsUsedAsPlayer00
- Returns
- boolean
◆ LoadAsset()
| function XEAnimatableModelComponent LoadAsset | ( | pPath | ) |
加载资源
- Parameters
-
pPath string 资源路径
- Returns
- boolean 是否加载成功
◆ LoadPhysicalAsset() [1/2]
| function XEAnimatableModelComponent LoadPhysicalAsset | ( | pPath | ) |
加载物理资源
- Parameters
-
pPath string 资源路径
- Returns
- boolean 动画播放列表指针
◆ LoadPhysicalAsset() [2/2]
| function XEAnimatableModelComponent LoadPhysicalAsset | ( | pPath | , |
| eType | |||
| ) |
XEAnimatableModelComponent_LoadPhysicalAsset01
- Parameters
-
pPath string eType number
- Returns
- boolean
◆ MarkAsInnerPrimitiveAnimController()
| function XEAnimatableModelComponent MarkAsInnerPrimitiveAnimController | ( | bMark | ) |
标记为是否是内部创建的原始动画控制器
- Parameters
-
bMark boolean xtrue:内部创建的，不需要手动释放；xfalse:外部创建的，需要外部自己释放
- Returns
- void
◆ new() [1/2]
| function XEAnimatableModelComponent__AnimLayerData new | ( | ) |
XEAnimatableModelComponent_AnimLayerData_new00
XEAnimatableModelComponent_new00
- Returns
- XEAnimatableModelComponent
XEAnimatableModelComponent_ModelAnimController_new00
◆ new() [2/2]
| function XEAnimatableModelComponent__ModelAnimController new | ( | pModelComponent | ) |
XEAnimatableModelComponent_ModelAnimController_new01
- Parameters
-
pModelComponent XEAnimatableModelComponent
◆ Pause()
| function XEAnimatableModelComponent__ModelAnimController Pause | ( | ) |
动画暂停播放
- Returns
- void
◆ Play()
| function XEAnimatableModelComponent__ModelAnimController Play | ( | ) |
动画从头开始播放
- Returns
- void
◆ Release()
| function XEAnimatableModelComponent Release | ( | ) |
释放资源
- Returns
- void
◆ RemoveAllAnimSequence()
| function XEAnimatableModelComponent RemoveAllAnimSequence | ( | ) |
移除当前动画控制器的所有层的所有动画资源
- Returns
- void
◆ RemovePhysicalAsset()
| function XEAnimatableModelComponent RemovePhysicalAsset | ( | ) |
移除物理资源
- Returns
- boolean
◆ Render()
| function XEAnimatableModelComponent Render | ( | pViewport | ) |
◆ Resume()
| function XEAnimatableModelComponent__ModelAnimController Resume | ( | ) |
动画继续播放
- Returns
- void
◆ SetAnimatableModelComponent()
| function XEAnimatableModelComponent__ModelAnimController SetAnimatableModelComponent | ( | pCmp | ) |
◆ SetAnimBlendTime()
| function XEAnimatableModelComponent SetAnimBlendTime | ( | pLayerName | , |
| pPath | , | ||
| fStartTime | , | ||
| fEndTime | |||
| ) |
设置融合动画中某个片段的起始时间
- Parameters
-
pLayerName string 动画所在的层name pPath string 动画片段资源路径 fStartTime number 设置动画片段开始时间 fEndTime number 设置动画片段结束时间
- Returns
- void
◆ SetAnimEndTime()
| function XEAnimatableModelComponent__ModelAnimController SetAnimEndTime | ( | fEndTime | ) |
设置动画播放器结束时间
- Parameters
-
fEndTime number
- Returns
- void
◆ SetCucolorisColor()
| function XEAnimatableModelComponent SetCucolorisColor | ( | color | ) |
◆ SetIXSkeletalPhysicsInstance()
| function XEAnimatableModelComponent SetIXSkeletalPhysicsInstance | ( | pIns | ) |
◆ SetRenderBodyShapeDebug()
| function XEAnimatableModelComponent SetRenderBodyShapeDebug | ( | bRender | ) |
设置是否渲染所有刚体
- Parameters
-
bRender boolean 是否渲染
- Returns
- void
◆ SetTime()
| function XEAnimatableModelComponent__ModelAnimController SetTime | ( | nTime | ) |
更新动画
- Parameters
-
nTime number 当前时刻
- Returns
- void
◆ SetUsedAsPlayer()
| function XEAnimatableModelComponent SetUsedAsPlayer | ( | bUsedAsPlayer | ) |
XEAnimatableModelComponent_SetUsedAsPlayer00
- Parameters
-
bUsedAsPlayer boolean
- Returns
- void
◆ Stop()
| function XEAnimatableModelComponent__ModelAnimController Stop | ( | ) |
动画停止播放
- Returns
- void
◆ Tick() [1/2]
| function XEAnimatableModelComponent__ModelAnimController Tick | ( | fInterval | ) |
更新动画控制器
- Parameters
-
fInterval number 帧间隔
- Returns
- void
◆ Tick() [2/2]
| function XEAnimatableModelComponent Tick | ( | fDel | , |
| bForceTick | |||
| ) |
更新动画控制器
- Parameters
-
fDel number bForceTick boolean
- Returns
- void
Variable Documentation
◆ AnimLayerData
| XEAnimatableModelComponent AnimLayerData = XEAnimatableModelComponent__AnimLayerData |
◆ AnimLayerDataIndexNone
| XEAnimatableModelComponent__AnimLayerData AnimLayerDataIndexNone = 0 |
◆ AnimLayerDataIndexNotSet
| XEAnimatableModelComponent__AnimLayerData AnimLayerDataIndexNotSet = 0 |
◆ bActive
| XEAnimatableModelComponent__AnimLayerData bActive = false |
@type boolean 是否被激活
◆ bIsMontageAsset
| XEAnimatableModelComponent__AnimLayerData bIsMontageAsset = false |
@type boolean 是否是蒙太奇资源
◆ nLayerIndex
| XEAnimatableModelComponent__AnimLayerData nLayerIndex = 0 |
@type number 索引
◆ szPath
| XEAnimatableModelComponent__AnimLayerData szPath = '' |
@type string 路径
◆ XEAnimatableModelComponent
◆ XEAnimatableModelComponent__AnimLayerData
Generated by
1.8.15
