#include <XEBindSocketInstance.h>

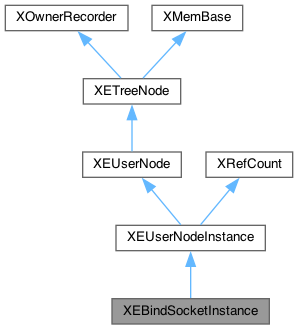

类 XEBindSocketInstance 继承关系图:

Inheritance graph

#include <XEBindSocketInstance.h>

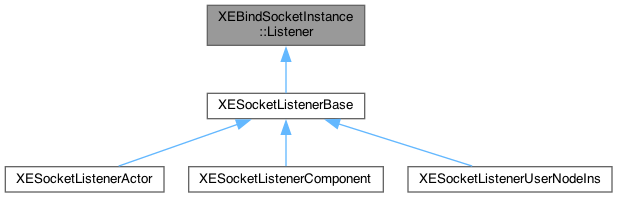

类 XEBindSocketInstance::Listener 继承关系图:

Inheritance graph

函数
function XEBindSocketInstance	AttachComponent () end

function XEBindSocketInstance	DetachComponent () end

function XEBindSocketInstance	UpdateAttachComponent (pAssetPath, pAssetType, pAssetAnimPath) end

function XEBindSocketInstance	GetAttachAssetPath () end

function XEBindSocketInstance	GetXEBoneInstance () end

function XEBindSocketInstance	GetXEBindSocketTemplate () end

function XEBindSocketInstance	GetWorldMatrix () end

function XEBindSocketInstance	GetWorldMatrix (mt4Absolute) end

function XEBindSocketInstance	GetAttachComponent () end

变量
	XEBindSocketInstance = {}

	XEBindSocketInstance__Listener = {}

XEBindSocketInstance	Listener = XEBindSocketInstance__Listener

函数说明

◆ AttachComponent()

function XEBindSocketInstance AttachComponent ( )

插槽上附加一个模型组件

返回: XEActorComponent

◆ DetachComponent()

function XEBindSocketInstance DetachComponent ( )

将附加的模型组件从插槽上解绑

返回: void

◆ GetAttachAssetPath()

function XEBindSocketInstance GetAttachAssetPath ( )

获取附加的组件资源路径

返回: string

◆ GetAttachComponent()

function XEBindSocketInstance GetAttachComponent ( )

获取附加的模型组件指针

返回: XEActorComponent

◆ GetWorldMatrix() [1/2]

function XEBindSocketInstance GetWorldMatrix ( )

获取当前插槽的世界矩阵

返回: XMATRIX4; void

◆ GetWorldMatrix() [2/2]

function XEBindSocketInstance GetWorldMatrix ( mt4Absolute )

获取当前插槽的世界矩阵

参数

mt4Absolute XMATRIX4 [in]父节点的世界矩阵

返回: XMATRIX4; void

◆ GetXEBindSocketTemplate()

function XEBindSocketInstance GetXEBindSocketTemplate ( )

获取插槽实例对应的插槽模板指针

返回: XEBindSocket

◆ GetXEBoneInstance()

function XEBindSocketInstance GetXEBoneInstance ( )

获取当前插槽节点实例依附的骨头节点实例指针，如果当前节点依附的是一个插槽，那么返回的是依附的插槽实例依附的骨头节点实例

返回: XEBoneInstance

◆ UpdateAttachComponent()

function XEBindSocketInstance UpdateAttachComponent	(	pAssetPath	,
		pAssetType	,
		pAssetAnimPath
	)

更新附加的组件信息

参数

pAssetPath	string 附加的组件资源路径
pAssetType	string 附加的组件类型
pAssetAnimPath	string 附加的seq动画资源路径

返回: XEActorComponent

变量说明

◆ Listener

XEBindSocketInstance Listener = XEBindSocketInstance__Listener

◆ XEBindSocketInstance

XEBindSocketInstance = {}

◆ XEBindSocketInstance__Listener

XEBindSocketInstance__Listener = {}
