#include <XSkeleton2dRenderComponent.h>

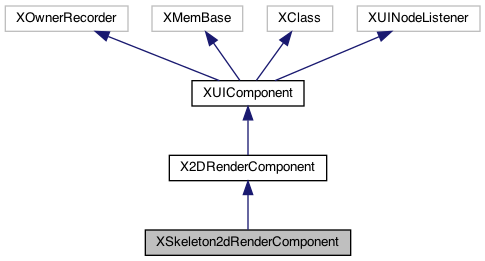

类 XSkeleton2dRenderComponent 继承关系图:

#include <XSkeleton2dRenderComponent.h>

XSkeleton2dRenderComponent::AniQueueData 的协作图:

#include <XSkeleton2dRenderComponent.h>

XSkeleton2dVertexEffectDelegate 的协作图:

函数
function XSkeleton2dRenderComponent	Create (pNode) end

function XSkeleton2dRenderComponent	Create () end

function XSkeleton2dRenderComponent	Reset () end

function XSkeleton2dRenderComponent	LoadAsset (asset) end

function XSkeleton2dRenderComponent	GetAsset () end

function XSkeleton2dRenderComponent	SetCurAnimationName (name) end

function XSkeleton2dRenderComponent	GetCurAnimationName () end

function XSkeleton2dRenderComponent	SetAnimation (name, loop, trackIndex) end

function XSkeleton2dRenderComponent	AddAnimation (name, loop, delay, trackIndex) end

function XSkeleton2dRenderComponent	SetTrackListener (entryid, listener, type) end

function XSkeleton2dRenderComponent	SetTrackEventListener (entryid, listener) end

function XSkeleton2dRenderComponent	SetCurAnimationIndex (index) end

function XSkeleton2dRenderComponent	GetCurAnimationIndex () end

function XSkeleton2dRenderComponent	ClearTracks () end

function XSkeleton2dRenderComponent	ClearTrack (trackIndex) end

function XSkeleton2dRenderComponent	SetToSetupPose () end

function XSkeleton2dRenderComponent	SetBonesToSetupPose () end

function XSkeleton2dRenderComponent	SetSlotsToSetupPose () end

function XSkeleton2dRenderComponent	UpdateAnimationCache (animName) end

function XSkeleton2dRenderComponent	InvalidAnimationCache () end

function XSkeleton2dRenderComponent	SetSkin (skinName) end

function XSkeleton2dRenderComponent	SetDefaultSkinIndex (index) end

function XSkeleton2dRenderComponent	GetDefaultSkinIndex () end

function XSkeleton2dRenderComponent	SetAttachment (slotName, attachmentName) end

function XSkeleton2dRenderComponent	SetMix (fromAnimation, toAnimation, duration) end

function XSkeleton2dRenderComponent	SetListener (listener, type) end

function XSkeleton2dRenderComponent	SetEventListener (listener) end

function XSkeleton2dRenderComponent	SetOpacityModifyRGB (value) end

function XSkeleton2dRenderComponent	IsOpacityModifyRGB () end

function XSkeleton2dRenderComponent	SetLoop (loop) end

function XSkeleton2dRenderComponent	IsLoop () end

function XSkeleton2dRenderComponent	SetTimeScale (scale) end

function XSkeleton2dRenderComponent	GetTimeScale () end

function XSkeleton2dRenderComponent	SetUseTint (enabled) end

function XSkeleton2dRenderComponent	IsUseTint () end

function XSkeleton2dRenderComponent	SetSlotsRange (startSlotIndex, endSlotIndex) end

function XSkeleton2dRenderComponent	Skeleton2DSpaceToNodeSpace (point) end

function XSkeleton2dRenderComponent	NodeSpaceToSkeleton2DSpace (point) end

function XSkeleton2dRenderComponent	SetScale (scale) end

function XSkeleton2dRenderComponent	GetScale () end

变量
	XSkeleton2dRenderComponent = {}

函数说明

◆ AddAnimation()

function XSkeleton2dRenderComponent AddAnimation	(	name	,
		loop	,
		delay	,
		trackIndex
	)

添加一个动画到动画队列尾部，还可以延迟指定的秒数。缓存模式下，trackIndex应设置为0

参数

name	cppstring
loop	boolean
delay	number
trackIndex	number trackIndex轨道索引，缓存模式不用设置

返回: number

◆ ClearTrack()

function XSkeleton2dRenderComponent ClearTrack ( trackIndex )

清除出指定 track 的动画状态。

参数

trackIndex number

返回: void

◆ ClearTracks()

function XSkeleton2dRenderComponent ClearTracks ( )

清除所有 track 的动画状态。

返回: void

◆ Create() [1/2]

function XSkeleton2dRenderComponent Create ( )

XSkeleton2dRenderComponent_Create01

返回: XSkeleton2dRenderComponent

◆ Create() [2/2]

function XSkeleton2dRenderComponent Create ( pNode )

创建一个XSkeleton2dRenderComponent渲染组件

参数

pNode XUINode 目标节点

返回: XSkeleton2dRenderComponent 创建出的XSkeleton2dRenderComponent组件

◆ GetAsset()

function XSkeleton2dRenderComponent GetAsset ( )

获取2d骨骼资源

返回: string

◆ GetCurAnimationIndex()

function XSkeleton2dRenderComponent GetCurAnimationIndex ( )

XSkeleton2dRenderComponent_GetCurAnimationIndex00

返回: number

◆ GetCurAnimationName()

function XSkeleton2dRenderComponent GetCurAnimationName ( )

XSkeleton2dRenderComponent_GetCurAnimationName00

返回: cppstring

◆ GetDefaultSkinIndex()

function XSkeleton2dRenderComponent GetDefaultSkinIndex ( )

XSkeleton2dRenderComponent_GetDefaultSkinIndex00

返回: number

◆ GetScale()

function XSkeleton2dRenderComponent GetScale ( )

XSkeleton2dRenderComponent_GetScale00

返回: number

◆ GetTimeScale()

function XSkeleton2dRenderComponent GetTimeScale ( )

XSkeleton2dRenderComponent_GetTimeScale00

返回: number

◆ InvalidAnimationCache()

function XSkeleton2dRenderComponent InvalidAnimationCache ( )

使动画缓存失效，之后会在每帧重新计算。

返回: void

◆ IsLoop()

function XSkeleton2dRenderComponent IsLoop ( )

XSkeleton2dRenderComponent_IsLoop00

返回: boolean

◆ IsOpacityModifyRGB()

function XSkeleton2dRenderComponent IsOpacityModifyRGB ( )

XSkeleton2dRenderComponent_IsOpacityModifyRGB00

返回: boolean

◆ IsUseTint()

function XSkeleton2dRenderComponent IsUseTint ( )

XSkeleton2dRenderComponent_IsUseTint00

返回: boolean

◆ LoadAsset()

function XSkeleton2dRenderComponent LoadAsset ( asset )

加载2d骨骼资源

参数

asset string

返回: boolean

◆ NodeSpaceToSkeleton2DSpace()

function XSkeleton2dRenderComponent NodeSpaceToSkeleton2DSpace ( point )

XSkeleton2dRenderComponent_NodeSpaceToSkeleton2DSpace00

参数

point XVECTOR2

返回: XVECTOR2

◆ Reset()

function XSkeleton2dRenderComponent Reset ( )

重置

返回: boolean

◆ SetAnimation()

function XSkeleton2dRenderComponent SetAnimation	(	name	,
		loop	,
		trackIndex
	)

设置当前动画。队列中的任何的动画将被清除。缓存模式下，trackIndex应设置为0

参数

name	cppstring
loop	boolean
trackIndex	number trackIndex轨道索引，缓存模式不用设置

返回: number TrackEntryid

◆ SetAttachment()

function XSkeleton2dRenderComponent SetAttachment	(	slotName	,
		attachmentName
	)

通过 slot 和 attachment 的名字来设置 attachment。 Skeleton 优先查找它的皮肤，然后才是 Skeleton Data 中默认的皮肤。

参数

slotName	cppstring
attachmentName	cppstring

返回: void

◆ SetBonesToSetupPose()

function XSkeleton2dRenderComponent SetBonesToSetupPose ( )

设置 bone 到起始动作使用 SkeletonData 中的 BoneData 列表中的值

返回: void

◆ SetCurAnimationIndex()

function XSkeleton2dRenderComponent SetCurAnimationIndex ( index )

设置/获取当前播放的动画索引。

参数

index number index索引，默认-1

返回: void

◆ SetCurAnimationName()

function XSkeleton2dRenderComponent SetCurAnimationName ( name )

设置/获取当前播放的动画名称。

参数

name	cppstring name动画名称

返回: void

◆ SetDefaultSkinIndex()

function XSkeleton2dRenderComponent SetDefaultSkinIndex ( index )

设置/获取默认皮肤索引。

参数

index number index索引，默认-1

返回: void

◆ SetEventListener()

function XSkeleton2dRenderComponent SetEventListener ( listener )

用来设置动画播放过程中帧事件的监听。

参数

listener XSkeleton2DEventListener

返回: void

◆ SetListener()

function XSkeleton2dRenderComponent SetListener	(	listener	,
		type
	)

用来设置动画的事件监听。

参数

listener	XSkeleton2DAnimationListener
type	number

返回: void

◆ SetLoop()

function XSkeleton2dRenderComponent SetLoop ( loop )

是否循环播放当前骨骼动画。

参数

loop boolean

返回: void

◆ SetMix()

function XSkeleton2dRenderComponent SetMix	(	fromAnimation	,
		toAnimation	,
		duration
	)

为所有关键帧设定混合及混合时间（从当前值开始差值）。

参数

fromAnimation	cppstring
toAnimation	cppstring
duration	number

返回: void

◆ SetOpacityModifyRGB()

function XSkeleton2dRenderComponent SetOpacityModifyRGB ( value )

是否启用贴图预乘。

参数

value boolean

返回: void

◆ SetScale()

function XSkeleton2dRenderComponent SetScale ( scale )

XSkeleton2dRenderComponent_SetScale00

参数

scale number

返回: void

◆ SetSkin()

function XSkeleton2dRenderComponent SetSkin ( skinName )

按名称查找皮肤，激活该皮肤。这里对每个皮肤的名称进行了比较。注意：设置皮肤不会改变 attachment 的可见性。

参数

skinName cppstring

返回: void

◆ SetSlotsRange()

function XSkeleton2dRenderComponent SetSlotsRange	(	startSlotIndex	,
		endSlotIndex
	)

设置骨骼插槽可视范围，设置[-1，-1]清除此范围。仅限非缓存模式使用

参数

startSlotIndex	number
endSlotIndex	number

返回: void

◆ SetSlotsToSetupPose()

function XSkeleton2dRenderComponent SetSlotsToSetupPose ( )

设置 slot 到起始动作使用 SkeletonData 中的 SlotData 列表中的值

返回: void

◆ SetTimeScale()

function XSkeleton2dRenderComponent SetTimeScale ( scale )

当前骨骼中所有动画的时间缩放率。

参数

scale number

返回: void

◆ SetToSetupPose()

function XSkeleton2dRenderComponent SetToSetupPose ( )

还原到起始动作。

返回: void

◆ SetTrackEventListener()

function XSkeleton2dRenderComponent SetTrackEventListener	(	entryid	,
		listener
	)

用来为指定的 TrackEntry 设置动画播放过程中帧事件的监听。

参数

entryid	number
listener	XSkeleton2DEventListener

返回: void

◆ SetTrackListener()

function XSkeleton2dRenderComponent SetTrackListener	(	entryid	,
		listener	,
		type
	)

用来为指定的 TrackEntry 设置动画的事件监听。

参数

entryid	number
listener	XSkeleton2DAnimationListener
type	number

返回: void

◆ SetUseTint()

function XSkeleton2dRenderComponent SetUseTint ( enabled )

是否启用染色效果。

参数

enabled boolean

返回: void

◆ Skeleton2DSpaceToNodeSpace()

function XSkeleton2dRenderComponent Skeleton2DSpaceToNodeSpace ( point )

XSkeleton2dRenderComponent_Skeleton2DSpaceToNodeSpace00

参数

point XVECTOR2

返回: XVECTOR2

◆ UpdateAnimationCache()

function XSkeleton2dRenderComponent UpdateAnimationCache ( animName )

更新某个动画缓存, 预计算动画中所有帧数据，由于在单帧计算所有数据，所以较消耗性能。若想更新缓存，可使用 InvalidAnimationCache 方法，具有较高性能。

参数

animName cppstring

返回: void

变量说明

◆ XSkeleton2dRenderComponent

XSkeleton2dRenderComponent = {}
