IOS到达率统计
当前IOS到达状态并不准确，调用APNs接口成功，即认为到达成功、展示成功 在IOS 10之后，可以通过扩展统计到真实的到达，此方案提供给需要精确状态的业务方
0.1. 原理

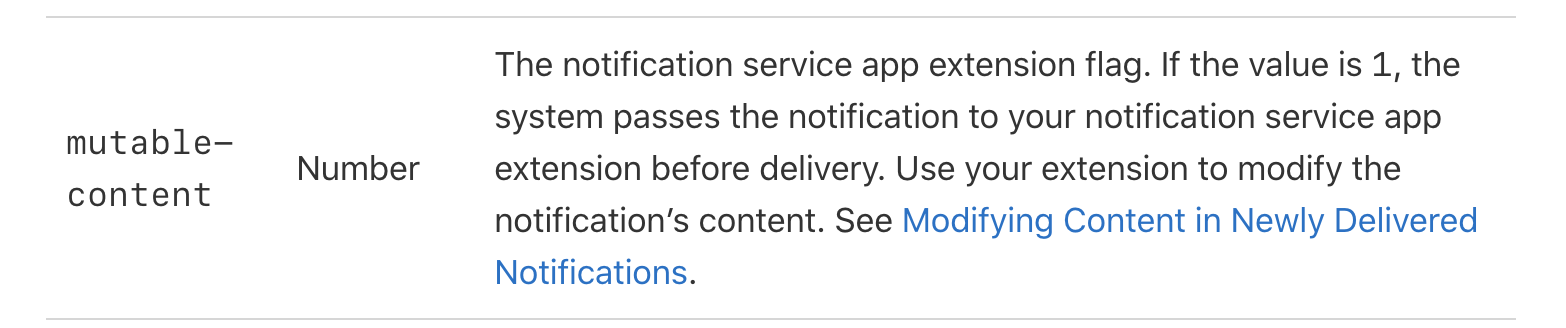

IOS10开始，无论客户端是否活着，都可以在push展示前修改push的内容，如标题内容，下载图片等。此接口需要服务端传mutable-content=1，并且客户端实现扩展。
利用此方案，可以在扩展中调用http接口，向服务端上报该push客户端已收到，服务端利用此状态做数据统计
注意：无论app是前台还是后台，都会调用扩展，但是在扩展中无法判断当前的前后台状态，所以此状态为到达，此方案无法统计展示（ios系统，app前台时无法展示push）。
0.2. 如何使用？
1、联系我们对你们的AppId配置使用启用真实到达率的统计，即配置所有的push都下发mutable-content=1和其他安全相关参数 2、客户端push扩展中代码实现，如下：
请关注 (void)request:(NSDictionary *)userInfo方法
#import "NotificationService.h"
#import <CoreServices/CoreServices.h>
#import <CommonCrypto/CommonDigest.h>
#import <UIKit/UIKit.h>
#define kCacheDirectory [NSSearchPathForDirectoriesInDomains(NSCachesDirectory, NSUserDomainMask, YES) objectAtIndex:0]
typedef NS_ENUM(NSInteger,MDPushNotificationFileType)
{
MDPushNotificationFileTypeNone = 0,
MDPushNotificationFileTypeImage,
MDPushNotificationFileTypeVideo,
MDPushNotificationFileTypeAudio,
};
@interface NotificationService ()
@property (nonatomic, strong) void (^contentHandler)(UNNotificationContent *contentToDeliver);
@property (nonatomic, strong) UNMutableNotificationContent *bestAttemptContent;
@end
@implementation NotificationService
- (void)didReceiveNotificationRequest:(UNNotificationRequest *)request withContentHandler:(void (^)(UNNotificationContent * _Nonnull))contentHandler {
self.contentHandler = contentHandler;
self.bestAttemptContent = [request.content mutableCopy];
NSDictionary *dict = self.bestAttemptContent.userInfo;
// 上传到达统计
[self request:dict];
// 下载图片
if ([dict isKindOfClass:[NSDictionary class]] && dict.count > 0) {
NSDictionary *apsDict = dict[@"aps"];
if ([apsDict isKindOfClass:[NSDictionary class]] && apsDict.count > 0) {
//获取文件类型
MDPushNotificationFileType fileType = [[apsDict objectForKey:@"file_type"] integerValue];
//获取文件路径
NSString *fileUrlStr = [apsDict objectForKey:@"file_path"];
if (![fileUrlStr isKindOfClass:[NSString class]] || fileUrlStr.length <= 0) {
self.contentHandler(self.bestAttemptContent);
}
//目前仅支持图片的展示
switch (fileType) {
case MDPushNotificationFileTypeImage:
{
__weak typeof(self) weakSelf = self;
[self loadAttachmentWithUrlString:fileUrlStr completionHandle:^(UNNotificationAttachment *aAttachment) {
if (aAttachment) {
weakSelf.bestAttemptContent.attachments = @[aAttachment];
}
weakSelf.contentHandler(self.bestAttemptContent);
}];
break;
}
case MDPushNotificationFileTypeVideo:
case MDPushNotificationFileTypeAudio:
default:
{
self.contentHandler(self.bestAttemptContent);
break;
}
}
} else {
self.contentHandler(self.bestAttemptContent);
}
} else {
self.contentHandler(self.bestAttemptContent);
}
}
#pragma mark 图片下载逻辑
- (void)loadAttachmentWithUrlString:(NSString *)urlStr completionHandle:(void(^)(UNNotificationAttachment *aAttachment))completionHandler
{
__block UNNotificationAttachment *attachment = nil;
NSURLSession *session = [NSURLSession sessionWithConfiguration:[NSURLSessionConfiguration defaultSessionConfiguration]];
[[session downloadTaskWithURL:[NSURL URLWithString:urlStr] completionHandler:^(NSURL * _Nullable location, NSURLResponse * _Nullable response, NSError * _Nullable error) {
if (error) {
attachment = nil;
} else {
NSString *extensionType = [self extensionTypeWithStr:[urlStr pathExtension]];
CFStringRef type;
if ([extensionType isEqualToString:@"jpg"]) {
type = kUTTypeJPEG;
}
else if ([extensionType isEqualToString:@"png"]) {
type = kUTTypePNG;
}
else {
type = (__bridge CFStringRef)@"";
}
NSError *attachmentError = nil;
attachment = [UNNotificationAttachment attachmentWithIdentifier:location.path URL:location options:@{UNNotificationAttachmentOptionsTypeHintKey: (__bridge NSString*)type} error:&attachmentError];
if (attachmentError) {
attachment = nil;
NSLog(@"%@",attachmentError.localizedDescription);
}
}
[session invalidateAndCancel];
completionHandler(attachment);
}] resume];
}
- (NSString *)extensionTypeWithStr:(NSString *)str
{
if (!str.length) return nil;
if ([str containsString:@"?"]) {
return [str componentsSeparatedByString:@"?"].firstObject;
}
return str;
}
- (void)serviceExtensionTimeWillExpire {
self.contentHandler(self.bestAttemptContent);
}
#pragma mark === 到达统计逻辑 ====
- (void)request:(NSDictionary *)userInfo{
NSString *exData = userInfo[@"_ext"];
// 无_ext在不打日志
if (exData.length > 0) {
NSMutableDictionary *logDict = [NSMutableDictionary dictionary];
NSInteger time = [[NSDate date] timeIntervalSince1970] * 1000;
[logDict setObject:@(time) forKey:@"time"];
[logDict setObject:@(1) forKey:@"type"];
NSData *extData = [exData dataUsingEncoding:NSUTF8StringEncoding];
NSDictionary *dict = [NSJSONSerialization JSONObjectWithData:extData options:kNilOptions error:nil];
NSString *security = [userInfo valueForKey:@"security"];
if(security.length == 0){
return;
}
[logDict setValue:dict forKey:@"data"];
NSMutableDictionary *resultDict = [@{@"log_content":logDict} mutableCopy];
[resultDict setValue:security forKey:@"security"];
NSString *content = [self stringWithFromDict:resultDict];
NSMutableURLRequest *request = [NSMutableURLRequest requestWithURL:[NSURL URLWithString:@"https://paas-push-api-log.immomo.com/push/log/iosarrive"]];
NSString *requestForm = [NSString stringWithFormat:@"mzip=%@",[self urlencode:content]];
[request setHTTPMethod:@"POST"];
[request setTimeoutInterval:10];
NSMutableData *postBody = [NSMutableData data];
[postBody appendData:[requestForm dataUsingEncoding:NSUTF8StringEncoding]];
[request setHTTPBody:postBody];
NSURLSession *session = [NSURLSession sessionWithConfiguration:[NSURLSessionConfiguration defaultSessionConfiguration]];
[[session dataTaskWithRequest:request completionHandler:^(NSData * _Nullable data, NSURLResponse * _Nullable response, NSError * _Nullable error) {
NSDictionary *dict = nil;
if (error) {
}else{
@try {
dict = [NSJSONSerialization JSONObjectWithData:data
options:NSJSONReadingMutableContainers | NSJSONReadingMutableLeaves
error:&error];
}
@catch (NSException *e) {
dict = [NSDictionary dictionary];
}
}
[session invalidateAndCancel];
}] resume];
}
}
- (NSString *)stringWithFromDict:(NSDictionary *)dict{
NSError *error = nil;
NSData *data = [NSJSONSerialization dataWithJSONObject:dict options:kNilOptions error:&error];
NSString *content = [[NSString alloc] initWithData:data encoding:NSUTF8StringEncoding];
return content;
}
- (NSString *)urlencode: (NSString*) content {
NSMutableString *output = [NSMutableString string];
const unsigned char *source = (const unsigned char *)[content UTF8String];
unsigned long sourceLen = strlen((const char *)source);
for (int i = 0; i < sourceLen; ++i) {
const unsigned char thisChar = source[i];
if (thisChar == ' '){
[output appendString:@"+"];
} else if (thisChar == '.' || thisChar == '-' || thisChar == '_' || thisChar == '~' ||
(thisChar >= 'a' && thisChar <= 'z') ||
(thisChar >= 'A' && thisChar <= 'Z') ||
(thisChar >= '0' && thisChar <= '9')) {
[output appendFormat:@"%c", thisChar];
} else {
[output appendFormat:@"%%%02X", thisChar];
}
}
return output;
}
@end
完成后即可统计到真实的到达量
